STANDARD RECEIVER RTS

This unit is required if you want to control an existing automation product (garage door operator or electric gate system) with a Somfy remote control. It requires a 24V ac or dc supply, which the existing gargage door or gate control unit usually provides (please refer to the technical characteristics of your existing control system). The output signal is a volt free dry contact that is connected to the switch input of the gargage door or gate control unit.

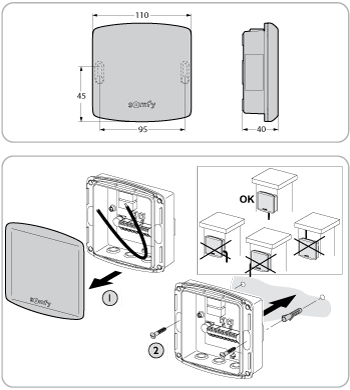

• Can be externally mounted - the unit is housed in a weatherproof box.
• Number of relays: 2.
• Number of programmable remote controls: 16 per relay (32 in total).
• RTS Antenna can be connected to increase radio range.

STANDARD RECEIVER RTS

Simplify your automation control by using only one handset to control everything. Example: You automate your gates with a Somfy motor kit, but your garage door is powered by a different brand. Use the Standard Receiver RTS to control your garage door operator with the same Somfy handset that you use to control your gates.

STANDARD RECEIVER RTS

1 x Standard Receiver RTS

STANDARD RECEIVER RTS

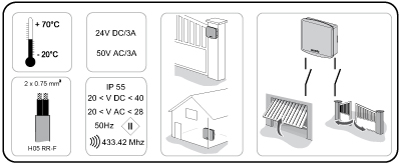

The Standard Receiver RTS requires a 24V supply and provides a volt free dry contact as an output signal. The technical specification of the device that the Standard receiver will control must be assessed to determine compatibility.
